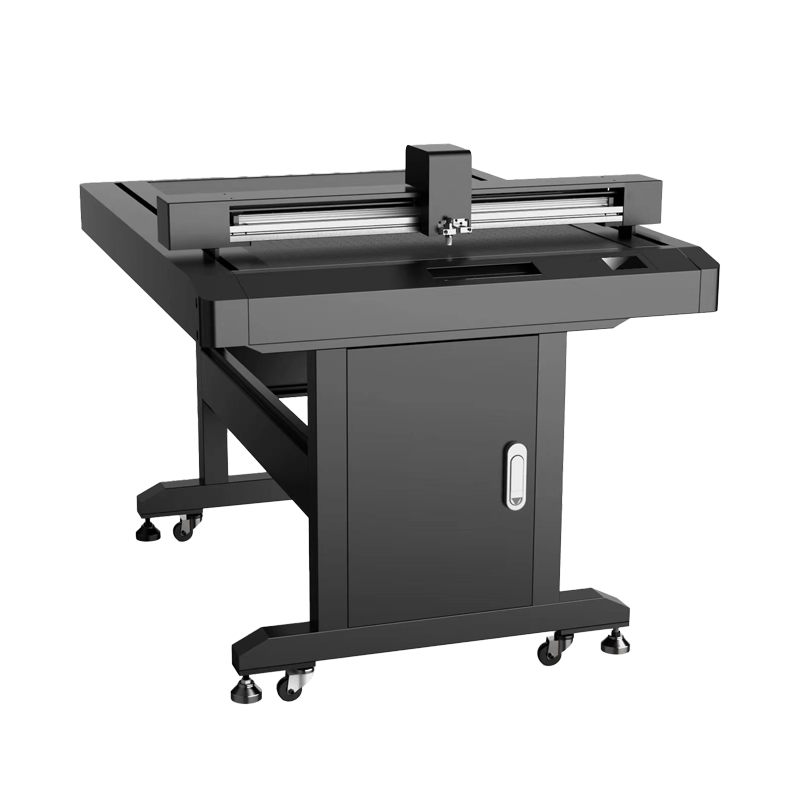

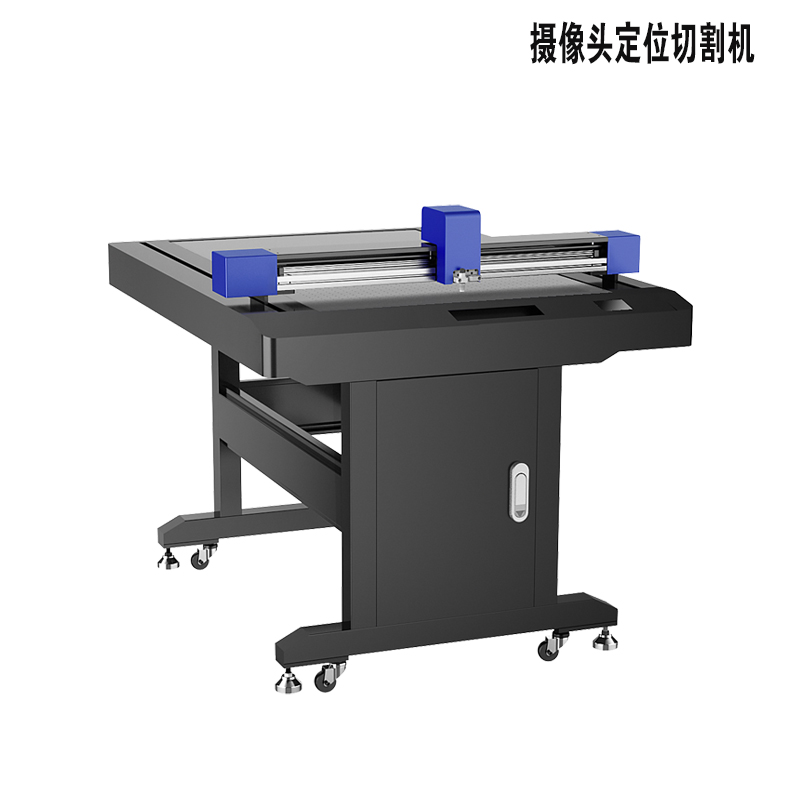

电子行业打样切割机-音圈系列：背光源模切打样机,贴纸打样机,模切打样机,画线、绘图、文字标注、压痕、半刀切割、全刀切割，一次完成（可自动调整下刀深度）。
应用于电子行业扩散膜、铝膜、铜膜、屏蔽材料、绝缘材料、光学材料、薄膜按键开关、锅仔片按键、导电胶带、特种胶粘带、不干胶、PVC板、白卡纸及塑胶板等材料的小批量生产。
代替传统的电子行业手工割样，开刀模打样，缩短相应的研发时间；满足少批量，多订单、多款式的生产目标。
▲ 主动旋转刀切割技术，杜绝了人工划切的不规范、冲压机精度限制、激光切割机烧焦/异味等弊端；
▲ 便捷输出、高速切割/压痕、快速成型；
▲ 免刀模，节省人力物力；
▲ 数据化，提升企业生产管理，
功能特点|Functions and special feature
● 传动系统全面采用进口直线导轨，速度快，精度高，声音小，质量稳定。
● Imported straight-line guide rails are used for the transmission system at a quick speed, high accuracy, low noise and steady quality.
● 静电板采用日本原装进口件，其它零配件也大量采用了进口产品。
● Japanese originally imported pieces for static boards, and a great number of imported products are also used for other parts and components.
● 最快切割速度达1200mm/s。
● The quickest cutting speed is at 1200mm/s.
● 256M缓冲区，一次性完成快速传输。
● A buffer at 256M and completion of one-off quick transmission.
● 标准I/O接口，HP-GL格式。
● Standard I/O interface in HP-GL format.
● 可连接任意CAD软件，广泛应用于服装、制鞋、箱包手袋、激光刀模绘图、灯饰、广告礼品、不干胶、彩盒包装等行业之绘图与切割。
● Any CAD software can be connected. It is widely used for plotting and cutting for the industries and sectors like garment, shoe making, cases, hand bags, laser cutter molds plotting, lighting fixtures, advertising gifts, self-adhesive and color box packing.
电子行业打样切割机技术参数标准表
the electronics industry proofing Cutting Machines
技术参数/型号 | S-0406A | S-0609A | S-1215A |
Technical information/model |
外形尺寸 | 980x730x920mm | 1280x930x920mm | 1850x1610x920mm |
Overall dimension |
切割面积 | 400x600mm | 900x600mm | 1500x1200mm |
Cutting area |
工作特性 | 电脑操作与切割同时进行，快速完成数据传输，可连续使用 |
Operation properties | Computer operation and cutting machines can be used simultaneously for quick data transmission capable of continuous operations |
切割速度 | 最快1200mm/S |
Cutting speed | 1200mm/s quickest |
切割厚度 | ≤2mm 可自动调节台面 |
Cutting thickness |
切割材料 | 黄厚纸板、红硬纸板、PVC板、白卡纸、鸡皮纸、纤维中底板以及塑胶板等 |
Cutting materials | Yellow thick paper board, red hard paper board, PVC board, ivory cardboard, sulphite paper, insole fiberboard and plastic board, etc |
切割方式 | 多用途刀座，4组不同的笔画、半刀、全刀设置 |
Cutting style | Multipurpose blade holder, 4 groups of different strokes, half blades |
笔型/刀型 | 普通的签字笔、油性笔、圆珠笔/特种乌钢刀 |
Pen shape/cutter shape | Common gel pens, oily pens, ball pens/specific tungsten steel cutter |
固定方式 | 双面胶粘贴/真空吸附/静电吸附 |
Fixing manner | Double-sided adhesive/vacuum absorption/static absorption |
机械分辨率 | 0.007mm |
Mechanical resolution |
软件分辨率 | 0.025mm、0.01mm、0.1mm 可选 |
Software resolution | 0.025mm, 0.01mm, 0.1mm optional |
传输接口 | 标准并口、串口、以太网口 |
Transmission interface | Standard parallel port, serial port, Ethernet port |
缓冲区容量 | 256M |
Buffer capacity |
传动材料 | 进口直线导轨 |
Transmission materials | Imported straight-line guide rail |
指令系统 | HP-GL兼容格式 |
Directive system | HP-GL compatible format |
数控面板 | 液晶显示和触点按纽 |
Digital control panel | Liquid crystal display and contact button |
工作电压/功率 | 交流220V ± 10%/50Hz |
Supply voltage/power | AC 220V ± 10%/50Hz |
保险丝规格 | 6A、2A |
Fuse specification |
电机 | 步进电机、伺服电机 |
电机Servomotor | Step motor, servomotor |
