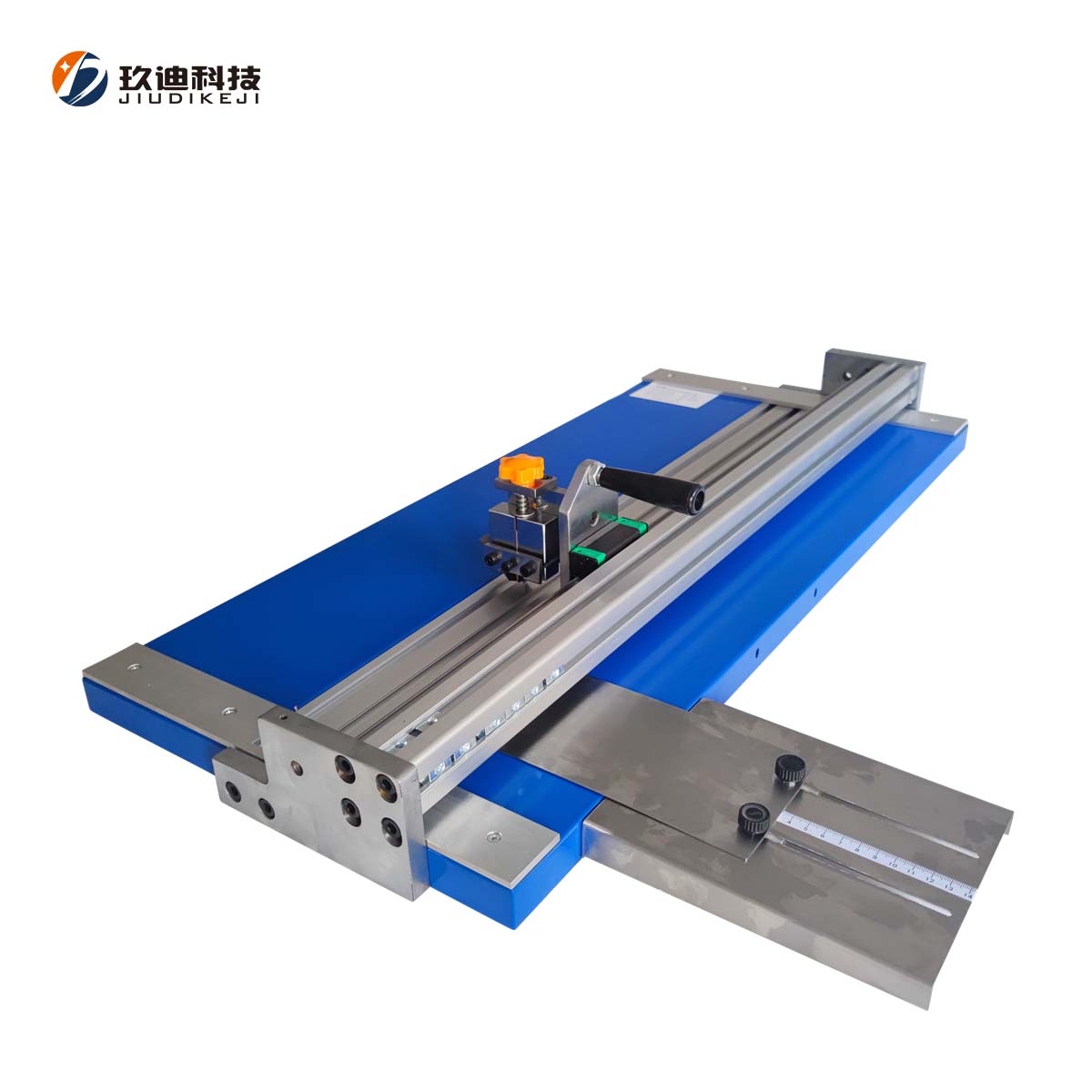

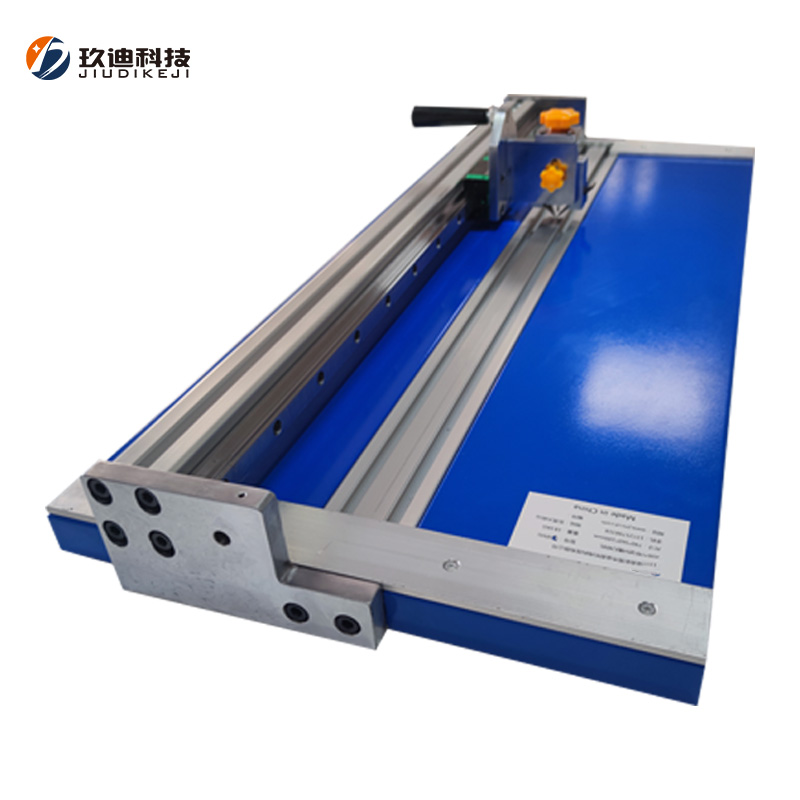

Manual slotting machine

Manual V-slot proofing machine gift box gray board jammed paper slot proofing machine j600v / j600vg gray board jammed paper, easy to control,

Manual box proofing a good helper, a simple and convenient desktop slotting proofing machine

Desktop slotting machine is a very effective manual waste removal equipment,

Compared with the traditional manual slotting efficiency, it can provide at least 6 times, and can also cover the beauty of slotting.

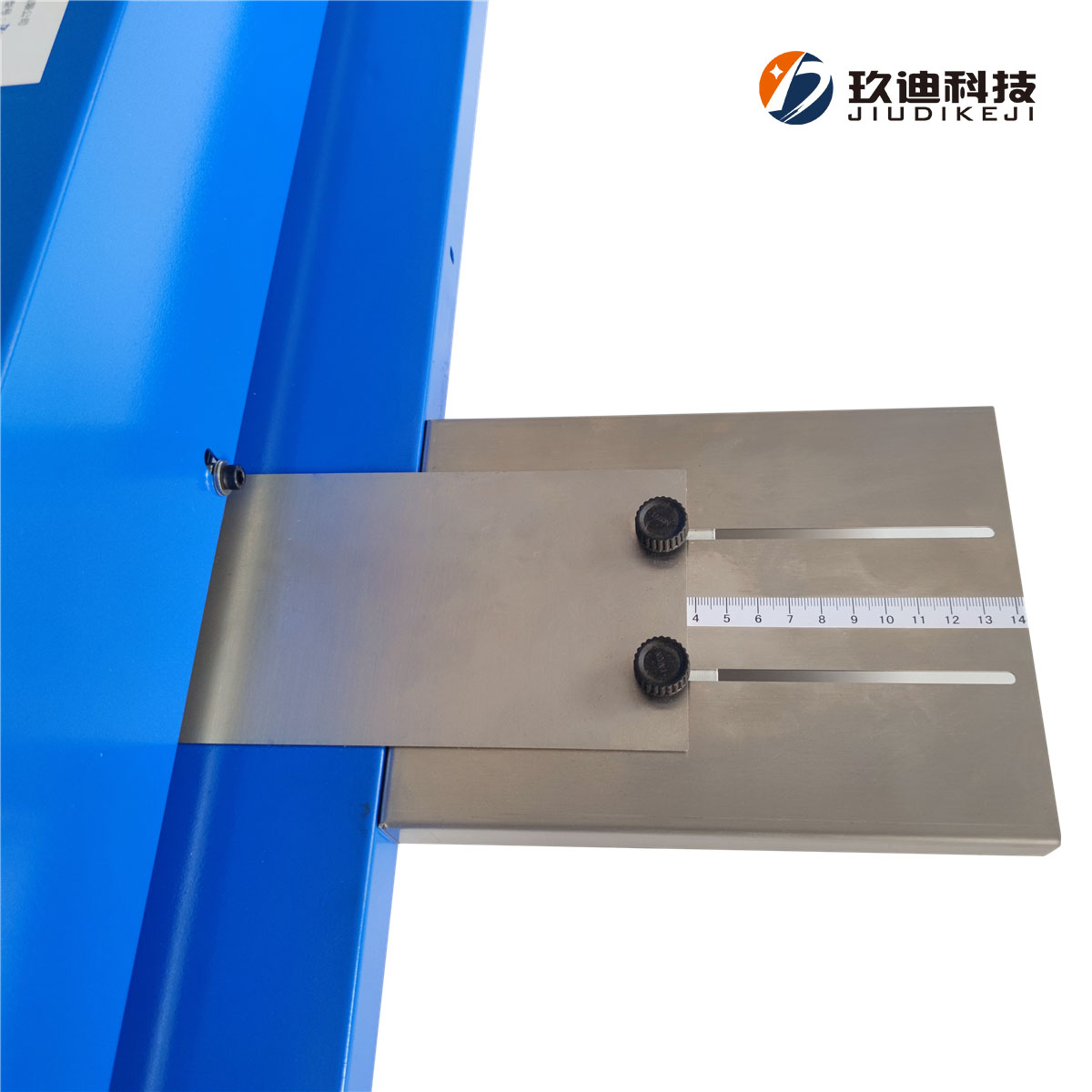

With scale positioning, it is more convenient, fast and accurate.

The V-slot machine has the advantages of compact structure, light weight, convenient use and very convenient use. Both male and female employees can operate after simple training.

This V-slot machine has no power operation in the whole process, and the safety factor index is high

The slotted blade is made of tungsten steel, which does not rust, has high hardness and is more wear-resistant. Breaking the traditional process, the machine adjustment is simpler and the operation is simpler

Appearance dimension: 850*590*150 (mm) with positioning

Machine weight: 16.2 (kg)

Slotting stroke: 700 (mm)

Slotting angle: 95 ° 127 °

95 ° blade slotting width: 0-8mm

127 ° blade depth 0-3mm width 0-7mm
